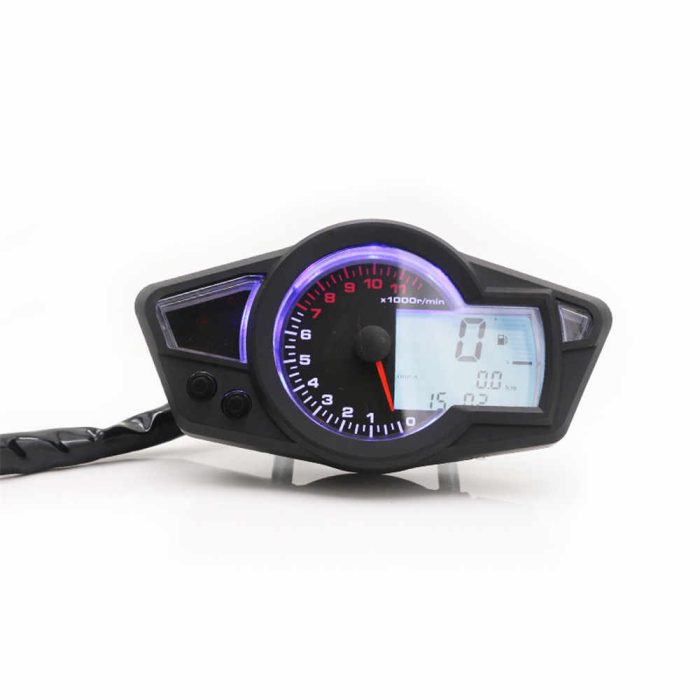

Universal Motorcycle Speedometer LCD Digital Tachometer Odometer Backlight Gauge Meter and Holder fit for Street Motorbike
PKR 9,500
Motorcycle Digital speedometer LCD Gauge Speedometer Tachometer Odometer motorbike instrument oil level meter
Size and packaging guidelines
[vc_row css=".vc_custom_1510558525230{margin-bottom: -30px !important;}"][vc_column width="1/2" css=".vc_custom_1510145373226{margin-bottom: 30px !important;}"][vc_single_image image="78" img_size="355x202" alignment="center" css=".vc_custom_1510558520515{margin-bottom: 0px !important;}"][/vc_column][vc_column width="1/2" css=".vc_custom_1510145376722{margin-bottom: 30px !important;}"]
[/vc_column][/vc_row]
| Specification | Chair | Armchair | Sofas |
| Height | 37" | 42" | 42" |
| Width | 26.5" | 32.5" | 142" |
| Depth | 19.5" | 22.5" | 24.5" |
| Assembly Required | No | No | Yes |
| Packaging Type | Box | Box | Box |
| Package Weight | 55 lbs. | 64 lbs. | 180 lbs. |
| Packaging Dimensions | 27" x 26" x 39" | 45" x 35" x 24" | 46" x 142" x 25" |
Description
Specifications:
Condition: 100% Brand New
Color: Black
Main Backlight: Blue
Display: LCD Digital
Power Voltage: DC 12V
RPM max display: 15000
Operating temperature: -30 ℃ ~ 80 ℃
Speed max. Display: 199km/h
Odometer distance max display: 99999.9km
Material: ABS Housing + LCD digital display
Functions:
Speed Display(kmh/mph)
RPM Display
Fuel Level Table
Oil pressure warning light
Check engine (warning) light
Water Temperature (coolant temperature)
Show time (hours & minutes)
Metric units switch
Waterproof

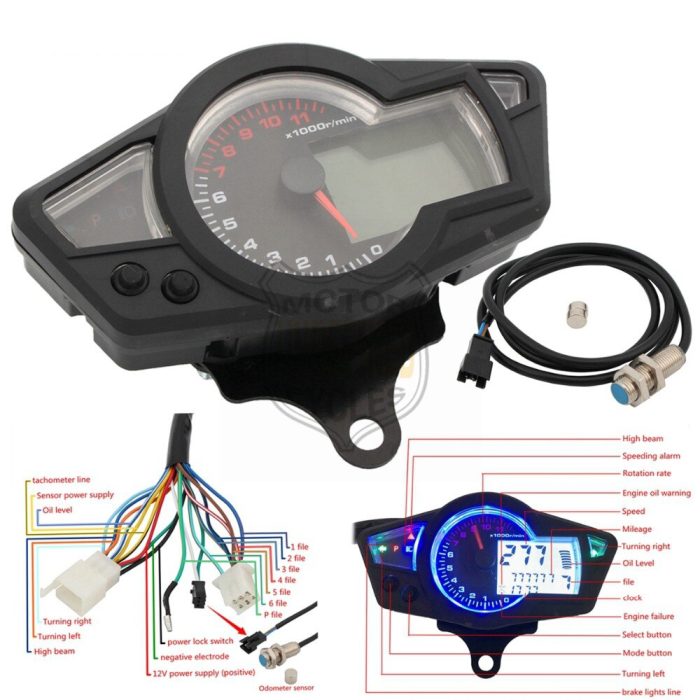

Wiring instructions: (only work with 2 or 4 cylinder)
Orange: left turn signal light
Light Blue: right turn signal light
Dark Blue: low-high beam light
Blue and White: water temperature
Yellow and White: gasoline gauge take unit
Black and Yellow: speed (connected to the engine pulses)
Red: positive
Green: negative
Black: power switch
Green and Yellow: hand brake parking lights
Green, white magnetic induction line
Compatible With: all motorcycles DC 12V
Additional information
| Weight | 2 kg |
|---|
